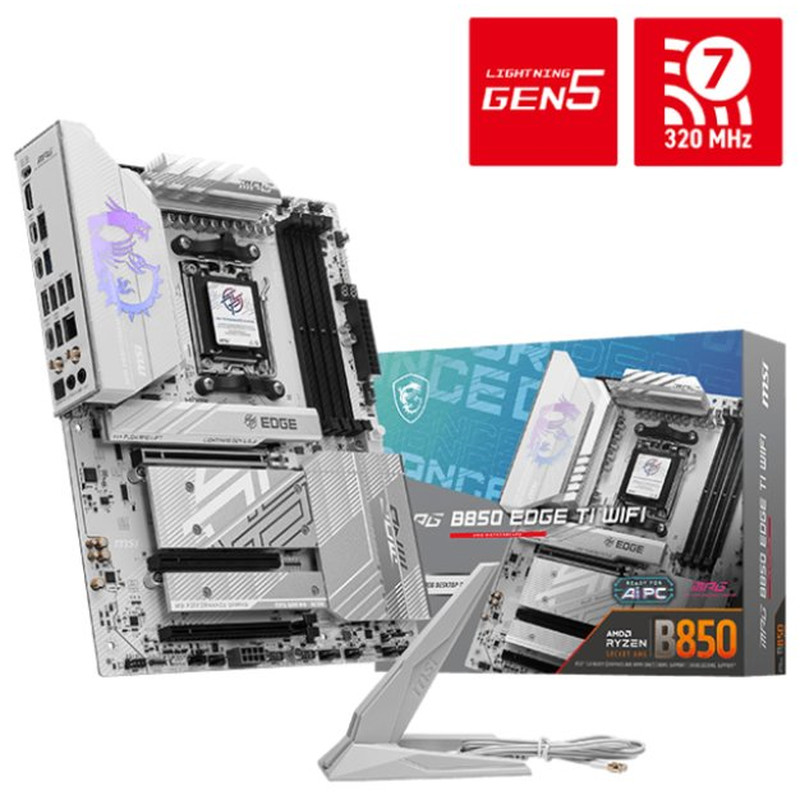

Marca	msi
Modelo	601-7E62-01S
Plataforma	- ATX ( 304,8 mm x 243,84 mm )
Chipset	- AMD B850
CPU Soportados	- Compatible con procesadores de escritorio AMD Ryzen series 9000/8000/7000 - Enchufe AM5
Memoria	- 4 x DDR5 UDIMM, Maximum Memory Capacity 256GB - Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s - Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8400+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s - Supports AMD POR Speed and JEDEC Speed - Supports Memory Overclocking and AMD EXPOTM - Supports Dual-Channel mode - Supports Non-ECC, Un-buffered memory - Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latche. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Slots Expansión	- 3 x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) - PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) *PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot
Gráficos	- 1 x HDMI Admite HDMI 2.1, resolución máxima de 8K 60 Hz* *Disponible sólo en procesadores con gráficos integrados. Las especificaciones gráficas pueden variar según la CPU instalada.
Puertos E/S, Conectores	Internos - 1 x conector de alimentación (ATX_PWR) - 2 x conector de alimentación (CPU_PWR) - 1 x conector de alimentación (PCIE_PWR de 8 pines) - 1 x ventilador de CPU - 1 x ventilador combinado (ventilador Pump_Sys) - 6 x ventilador del sistema - 1 x conector EZ (JAF_2) - 2 x Panel frontal (JFP) - 1 x Intrusión de chasis (JCI) - 1 x audio frontal (JAUD) - 3 x Conector LED RGB V2 direccionable (JARGB_V2) - 1 x conector LED RGB (JRGB) - 1 x cabezal de pin TPM (compatible con TPM 2.0) - 4 x puertos USB 2.0 - 4 x puertos USB tipo A de 5 Gbps - 1 x puerto USB tipo C de 20 Gbps Externos - Botón Borrar CMOS - USB 10 Gbps tipo A - USB 5 Gbps tipo A - USB 2.0 - LAN 5G - Wi-Fi/Bluetooth - Conectores de audio - Botón BIOS flash - HDMI - USB 10 Gbps tipo C - USB 10 Gbps tipo A - USB 10 Gbps tipo C - Salida óptica S/PDIF
Otras Características	Almacenamiento - 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices - 4x SATA 6G - M.2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) - M.2_2 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600 / 8400 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) LAN Inalámbrica y Bluetooth - WiFi 7 El módulo inalámbrico está preinstalado en la ranura M.2 (Key-E) Admite MU-MIMO TX/RX, 2,4 GHz/ 5 GHz/ 6 GHz* (320 MHz) hasta 5,8 Gbps Soporta 802.11 a/ b/ g/ n/ ac/ ax/ be - Compatible con Bluetooth 5.4*, MLO, 4KQAM La compatibilidad con la banda de 6 GHz puede depender de las regulaciones de cada país y Wi-Fi 7 estará listo en Windows 11 versión 24H2. La versión de Bluetooth puede actualizarse; consulte el sitio web del proveedor del chipset Wi-Fi para obtener más detalles. Bluetooth 5.4 estará listo en Windows 11 versión 24H2. USB - 4 x USB 2.0 (Trasero) - 4 x USB 2.0 (Frontal) - 1 x USB 5Gbps Tipo A (Trasero) - 4 x USB 5Gbps Tipo A (Frontal) - 2 x USB 10Gbps Tipo A (Trasero) - 3 x USB 10Gbps Tipo C (Trasero) - 1 x USB 20Gbps Tipo C (Frontal) Red - Realtek 8126 5G LAN Audio - Realtek ALC4080 Codec - 7.1-Channel USB High-Performance Audio - Supports up to 32-Bit/384 kHz playback on front panel - Supports S/PDIF output Sistema operativo** - Compatibilidad con Windows 11 de 64 bits
Fecha Revisión	15-01-2025 por RTY
